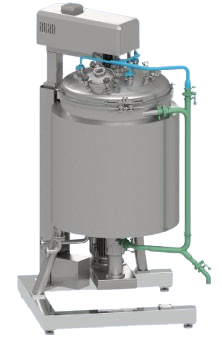

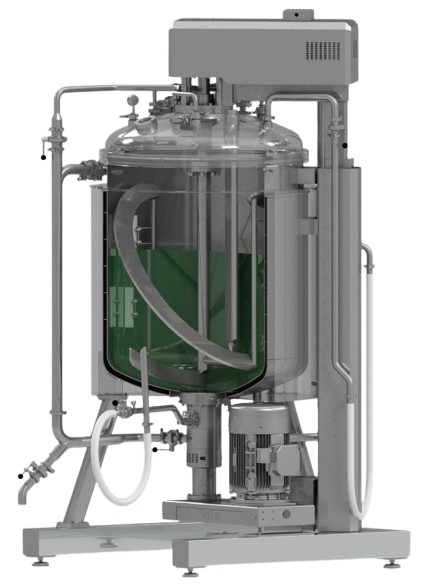

Vacuum Mixing Vessel

Our Vacuum Mixing Vessel is an advanced solution designed to enhance the efficiency and precision of your mixing processes. Whether you’re in the pharmaceutical, cosmetic, food, or chemical industries, this cutting-edge vessel ensures that your materials are mixed under optimal conditions, providing superior results every time.

Key Benefits
  • Vacuum-Assisted Mixing: Removes air pockets and minimizes oxidation, making it ideal for sensitive ingredients and formulations.
    Efficient Homogenization: Ensures uniform and consistent blending, even with complex mixtures.
  • Temperature Control: Features integrated heating and cooling systems, ensuring precise temperature regulation for heat-sensitive products.
  • Robust Design: Constructed from premium stainless steel for durability, corrosion resistance, and easy maintenance.
  • Customizable Sizes: Available in a range of capacities to suit various production scales, from R&D labs to large-scale manufacturing.

The Vacuum Mixing Vessel is engineered to streamline your production, improve product consistency, and minimize waste. With advanced vacuum technology and efficient mixing performance, it’s the perfect solution for manufacturers looking to elevate their process efficiency and product quality.

Lid Lifting
  • Visual inspection and cleaning validation of vessel and agitator
  • Electro-mechanical drive for lifting
  • No hydraulic powerpack and hoses are required
  • No contamination of product and facility due to oil leakage
    Cantilever lid opening for aesthetic appearance
  • Low noise operation
Support Frame
  • Frame supports vessel, lifting system and homogenizer
  • Adjustable leg supports for ease leveling and alignment
  • Excellent accessibility to homogenizer and bottom accessories
  • Easy installation and minimal erection activities
  • Mounting on load cell without additional modification in frame

Wax phase transfer and power induction

Wax phase transfer and powder induction.
Regulated and controlled transfer rates and mixing concentrations.

  • Direct transfer of hot wax phase in high shear zone of homogenizer…
  • No wax solidification and sticking in vessel shell, lid and agitator
  • Immediate. emulsification before solidification of waxes.
  • Constant phase concentration in the mixing zone.
Homogenizer

Programmable and reproducible induction or raw materials under vacuum.

  • Directly attached to vessel bottom results in minimal product residue and increase in yield
  • Programmable and flexible induction intervals
  • Induction of fluids/powders/granules/pellets
  • Immediate dispersion without lumps
  • Easy dispersion of hydrating powders
  • No sticking of powder or dust formation in vessel
Clean-in place system

CIP system as part of the external circulation line

  • Rotating spray balls for complete coverage
  • Constant flow and pressure on spray balls and in piping
  • No manual cleaning steps required
  • Minimal water and detergent consumption
  • 100% validated and repeatable process
  • Considerable reduction in labour costs
  • First-in-First-out principle
  • Volume-controlled homogenization according to batch turnover principle (BTO)
    Optional flow meter for precise BTO measurement
  • Optimized for minimal pressure drop for viscous
    product and CIP liquid
